Candle Drilling Machine
Drills the wick hole in pin-formed candles — straight, centred and to a repeatable depth.
Overview
Pin-formed pillar candles come out of the mould solid, with the wick fitted afterwards. This bench machine drills that hole.
Doing it by hand is where the quality goes: a hole drilled off-axis puts the wick off-centre and the candle burns down one side; a hole drilled too shallow leaves the wick loose. The pneumatic cylinder gives a controlled, repeatable feed stroke, the clamping block holds the candle square to the drill, and the motor-and-gearbox drive keeps the bit at a steady speed through the wax.

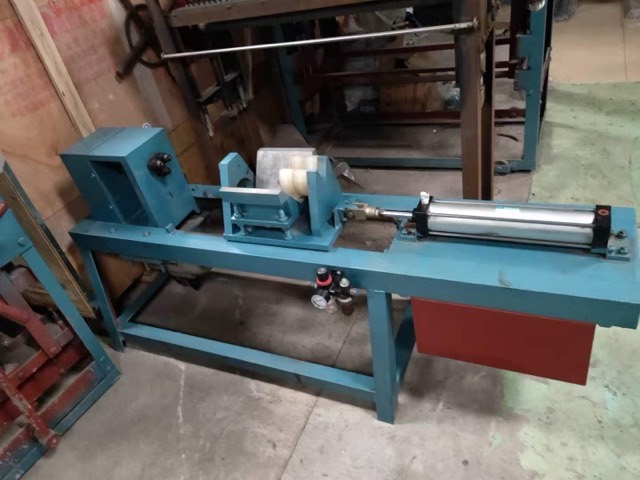

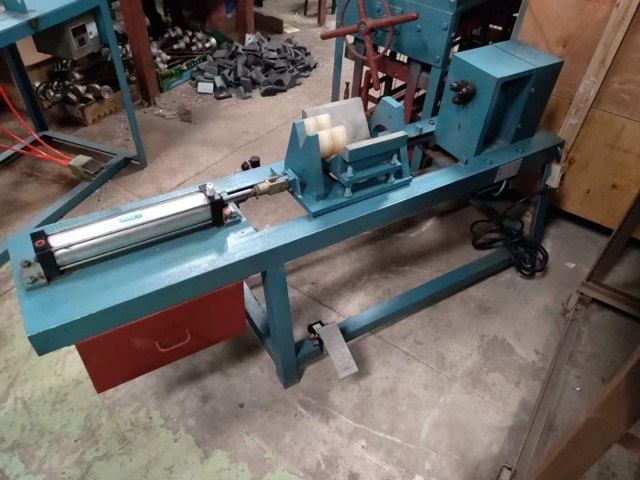

Built on a welded steel bench frame with a side-mounted control switch. Drill diameter, stroke depth and clamp tooling are built to your candle.
Key features
- Pneumatic cylinder feed for a repeatable stroke
- Clamping block holds the candle square to the drill axis
- Motor and gearbox drive for steady bit speed
- Welded steel bench frame with side control switch
- Drill diameter, stroke depth and clamp tooling built to order
Specifications
| Candle / batch size | Customised |
|---|---|
| Mould quantity | Customised |
| Machine dimensions | Customised |
| Power supply | Customised (single or three phase) |
| Material | Stainless steel / welded steel frame |
| OEM / ODM | Supported |
This machine is built to order, so the table states what is configurable rather than a fixed model. Send us your requirement and we will come back with the actual figures.
Technical description prepared from factory photographs. Detailed specifications available on request.
