Double-Wall Oil Heated Multi-Purpose Wax Melting Tank
A small jacketed tank on castors — gentle oil heat for blending fragrance and colour, wheeled to wherever the batch is needed.
Overview

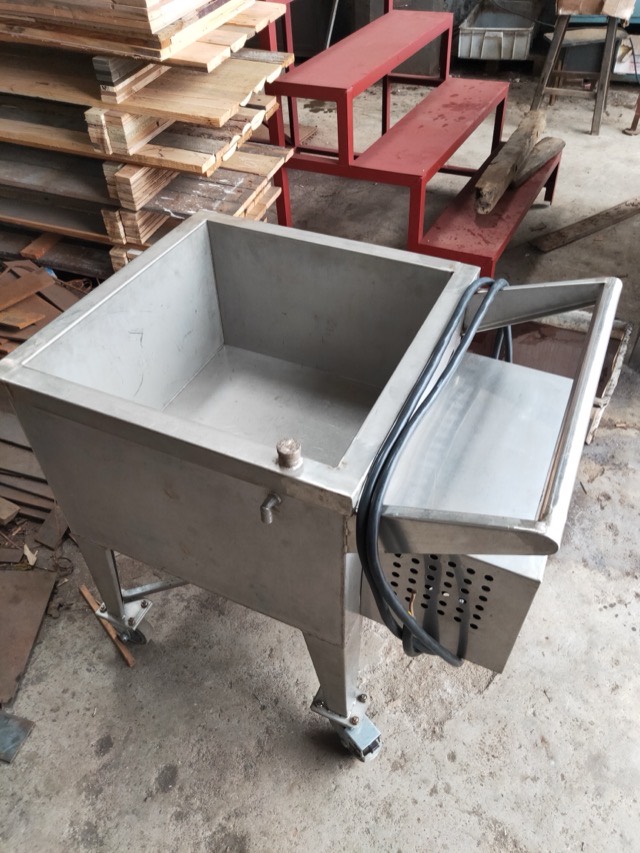

A compact double-wall tank on four braked castors, with a welded push handle and a thermal oil jacket between the inner vessel and the outer shell. Heat reaches the wax through the oil and the jacket wall — never through an element sitting in the melt.
It is built for the blending step rather than for bulk melting. Fragrance oil and dye go into a measured charge, and because the jacket runs only a few degrees above the set point, the batch can be held and worked without cooking off the top notes or shifting the colour.

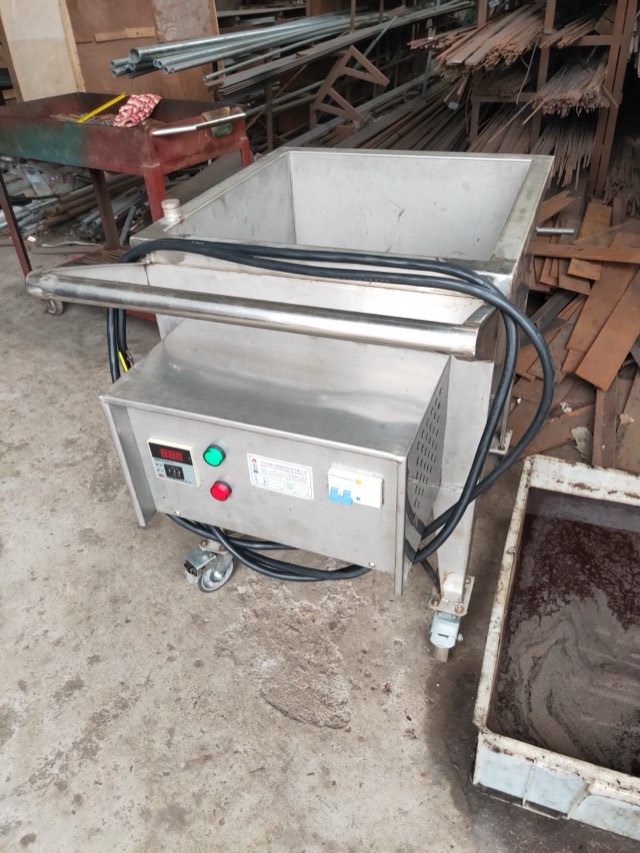

A filler cap on the top rim charges the oil jacket, a small tap on the side drains the wax, and the control box on the front carries the thermostat, run and stop buttons, indicator and breaker on a trailing supply lead — so the tank can be plugged in at whichever bench it is standing at.
Open top as shown; a cover and a paddle mixer can be added. Tank volume, heating capacity and voltage are built to your requirement.
Key features
- Double-wall thermal oil jacket — gentle, even heat with no element in the wax
- Sized and built for blending fragrance and colour into a measured batch
- Four braked castors and a welded push handle
- Thermostat, run/stop buttons, indicator and breaker in a front control box
- Oil filler cap on the rim; side tap for draining the wax
- Tank cover and paddle mixer available on request
- 304 stainless steel, heavy-duty welded construction
- Tank volume, heating capacity and voltage built to order
Specifications
| Model | ZD-U-V |
|---|---|
| Candle / batch size | Customised |
| Mould quantity | Customised |
| Machine dimensions | Customised |
| Power supply | Customised (single or three phase) |
| Material | Stainless steel / welded steel frame |
| OEM / ODM | Supported |
This machine is built to order, so the table states what is configurable rather than a fixed model. Send us your requirement and we will come back with the actual figures.
Technical description prepared from factory photographs. Detailed specifications available on request.
