LED Candle Making Machine
Wax shells for flameless LED candles, poured and recycled automatically from a circulated melting tank.
Overview

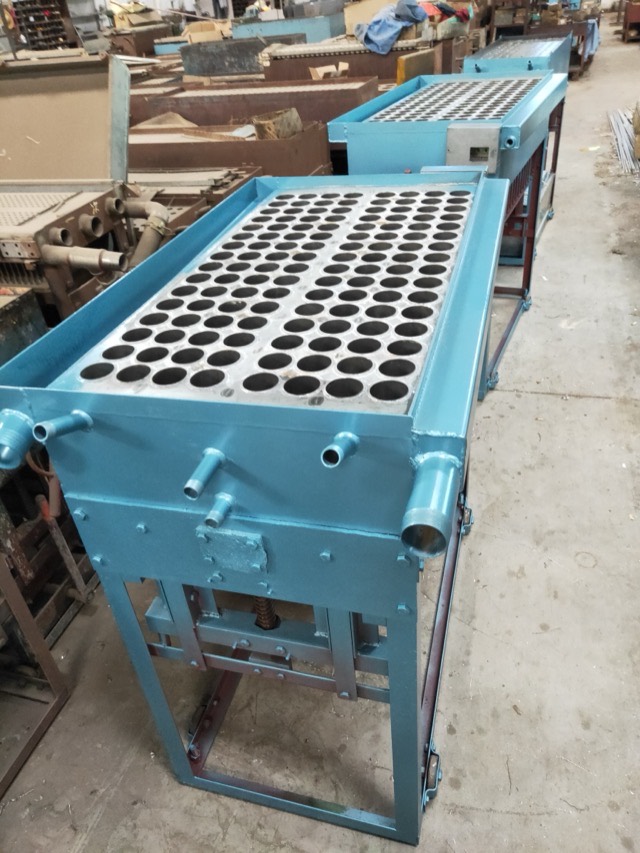

A customised manual LED candle making machine. Candle size, shape and mould quantity are designed according to your requirements and candle specifications.

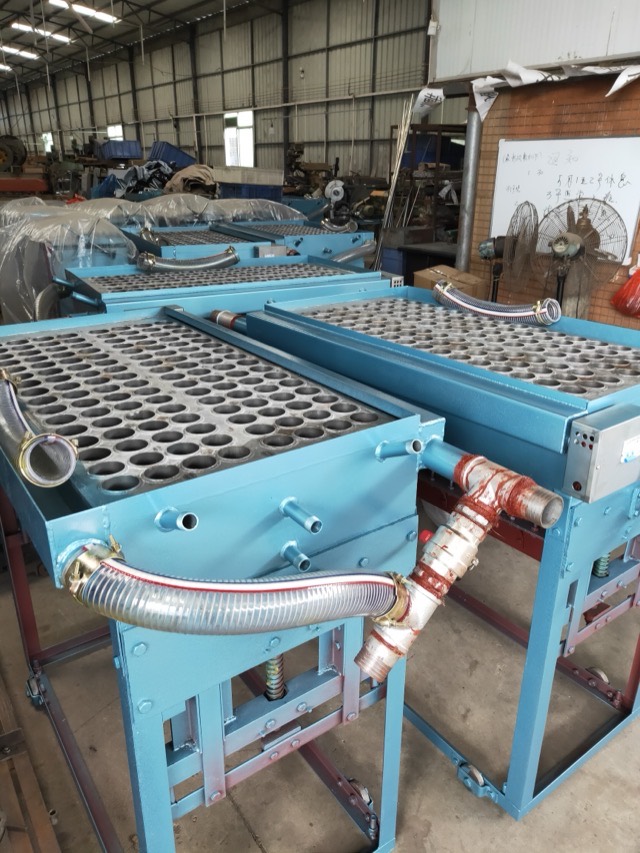

The machine is connected to a circulated wax melting tank. Liquid wax is poured into the moulds automatically and recycled back into the tank automatically — no operator hand-pouring is required. Six, eight or ten machines can share a single melting tank.
Key features
- Hand-operated semi-automatic candle pouring machine — the machine itself needs no electricity
- Automatic wax feed and return from a shared circulated melting tank
- Simple operation: pour, cool by circulated cold water, operate the handle and extrude the ready candles
- Seamless stainless steel pipe moulds for a smooth candle surface
- Service life of 15 years and more
- Designed for wax-shell LED candles
Specifications
| Description | LED wax candle making machine |
|---|---|
| Type of candles | Wax LED candles |
| Candle diameter | Customised |
| Candle length | Customised |
| Candles per operation | 72 pcs, 44 pcs, customised |
| Operations per hour | 1 time per hour |
| Dimensions (L×W×H) | 148 × 60 × 120 cm |
| Gross / net weight | 290 kg / 265 kg |
| Shipping volume | 1.06 m³ |
Every figure below is a typical configuration. Candle size, mould count and machine dimensions are built to your specification.
