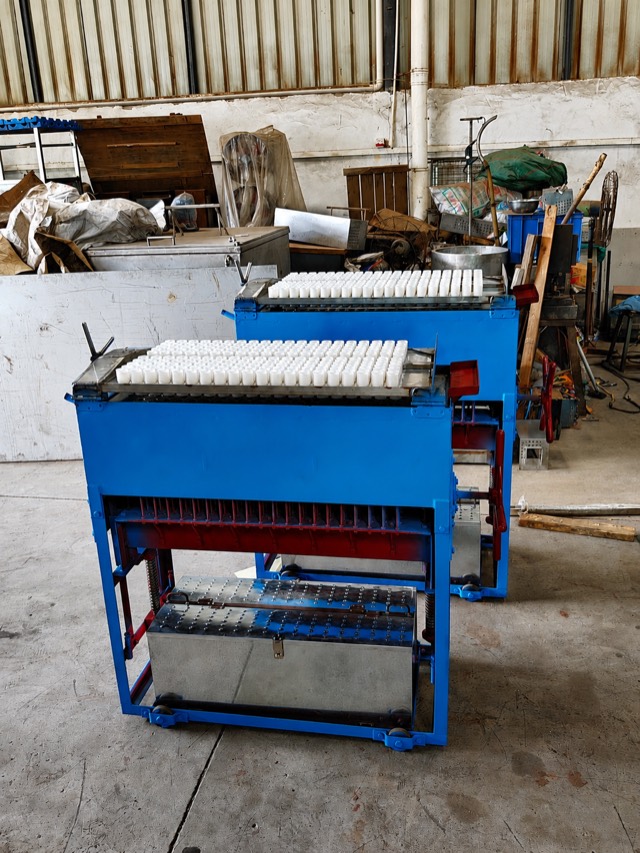

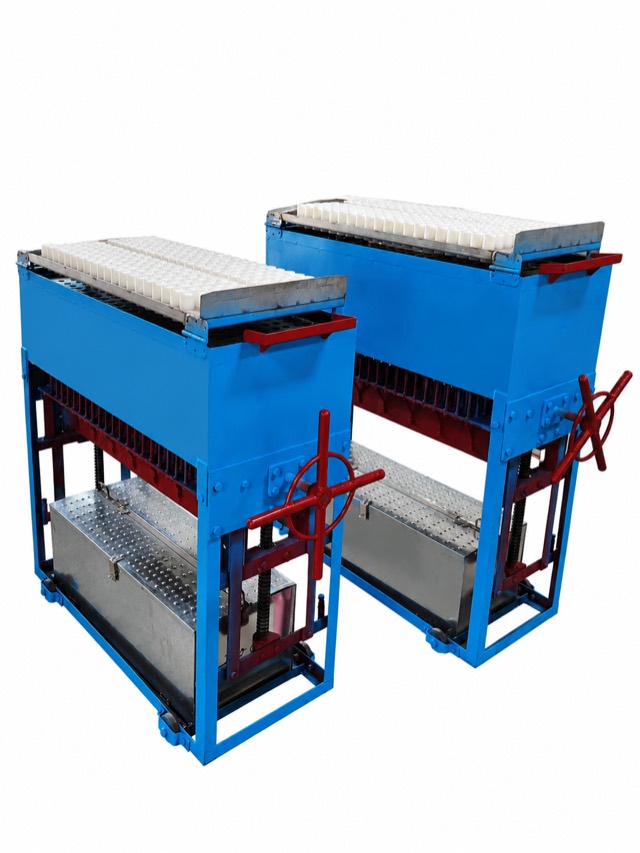

Taper / Church Candle Machine with Clamping Wax Tray
Long taper and church candles from 6 to 17 inches, 200 pieces per cycle.
Overview
A customised manual taper candle making machine. Candle size, shape and mould quantity are designed according to your requirements and candle specifications.
Built on the same clamping wax tray platform as our household machine, with a taller frame and longer mould tubes to cover church and altar candle lengths.
Key features
- Hand-operated semi-automatic candle pouring machine — no electricity needed
- Simple operation: thread the wick, pour melted wax, cool by circulated cold water, operate the handwheel, extrude, cut the wicks and collect
- Seamless stainless steel pipe moulds for a smooth candle surface
- Service life of 15 years and more
- Designed for taper candles from 6 inch to 17 inch
Specifications
| Description | Taper / church candle making machine |
|---|---|
| Type of candles | Taper candles |
| Candle diameter | 20–25 mm, customised |
| Candle length | 150–425 mm, customised |
| Candles per operation | 200 pcs, customised |
| Operations per hour | 1 time per hour |
| Dimensions (L×W×H) | 148 × 60 × 135 cm |
| Gross / net weight | 305 kg / 280 kg |
| Shipping volume | 1.2 m³ |
Every figure below is a typical configuration. Candle size, mould count and machine dimensions are built to your specification.
