Stick / Household Candle Machine with Clamping Wax Tray

360 candles per cycle with no manual wick hanging — our patented clamping wax tray design.

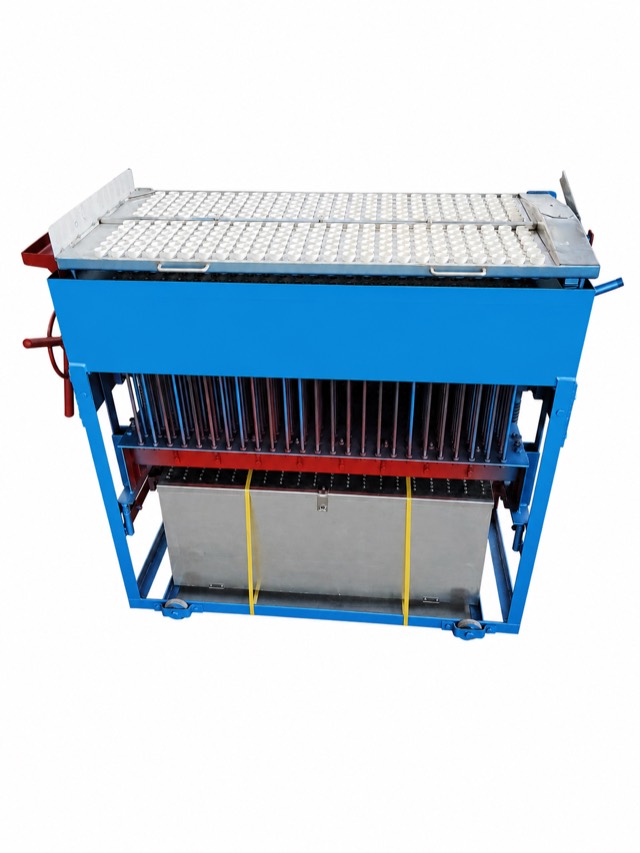

Stick / Household Candle Machine with Clamping Wax Tray — Detail view 1

Overview

A customised manual household candle making machine. Candle size, shape and mould quantity are designed according to your requirements and candle specifications.

This model carries our patented clamping wax tray. Conventional candle machines require an operator to hang every wick by hand before each pour — slow, labour-intensive and the main bottleneck on output. The clamping tray holds the previous batch at the top of the machine, and that batch pulls the next length of wick through the mould tubes automatically. Manual wick hanging is eliminated entirely.

360Candles per cycle
1Operator per 4+ machines
~1440Candles an hour, 4 machines

Stick / Household Candle Machine with Clamping Wax Tray The full production cycle: the previous batch finishes cooling, is cut free and lifted out, the clamping tray opened and the surplus wax cake cleared, handwheel ejection, ejector return with automatic wick feed, then pouring and circulated water cooling.

Key features

Hand-operated semi-automatic candle pouring machine — no electricity needed
No manual wick hanging — the previous batch draws the next length of wick
Simple operation: pour melted wax, cool by circulated cold water, operate the handwheel, extrude the candles, cut the wicks and collect
Seamless stainless steel pipe moulds for a smooth candle surface
Candle length can be adjusted
Service life of 15 years and more
Designed for plain household candles and dinner candles

Specifications

Description	Stick / household candle making machine
Type of candles	Straight candles
Candle diameter	10–30 mm, customised
Candle length	100–250 mm, customised
Candles per operation	360 pcs, 320 pcs, customised
Operations per hour	1 time per hour
Dimensions (L×W×H)	148 × 60 × 120 cm
Gross / net weight	290 kg / 265 kg
Shipping volume	1.06 m³
